23 mm SINGLE MIXED SHELF CABINET ALBERCA SERIES
Detachable shelf cabinet built as follows:
23 mm thick plywood sides with a first-quality beech veneer, 23 x 7 mm solid wood round edged fronts. 25 mm wide and 15 mm high nylon levelers. Varnished in its own color with a buffed polyurethane back, finished in semiungleazed lacquers.
Frame: 30 x 20 x 1.5 mm rectangular steel tube. Four 5 mm iron knee plates fixed to the sides with screwed pegs and black rivets. Finished in epoxy paint.
400 mm deep horizontal shelves made on top quality 1 mm thick steel plate. Label holders on front part and 105 mm high back wing. Finished in epoxy point.

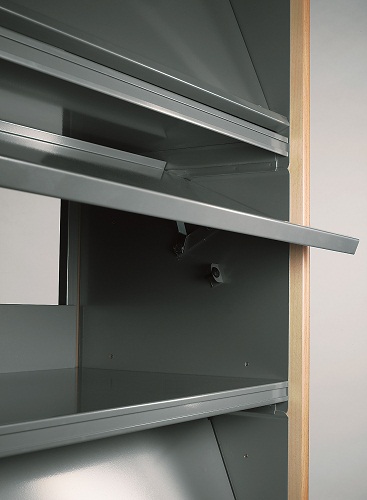

Folding metallic door with a 3 cm wing in the lower side for books or magazines. The door is elevated by four 15 x 3 mm chromate plate cams and a 12 x 10 mm aluminum tube, everything held to the side by brackets. Finished in epoxy paint.
Holding brackets made on first quality 1.5 mm thick steel plate. Finished in epoxy paint.
Metallic parts: finish with heat-hardened powder, base epoxide resins and polymerized by heating at 200° C previously cleaned, rinsed and chromic passified by phosphating. Choose color from enclosed chart.
DIMENSIONS:
Height: with 5, 4, 3 or 2 spare drawers Shelf width: 900, 990 or 1200 mm
Depth: 457 or 870 mm (single or double shelf cabinets)
