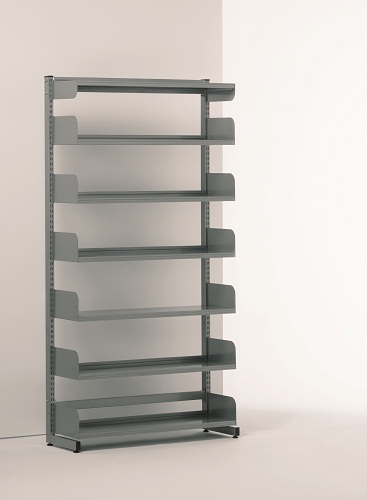

SHELF CABINET SERIES 27
Detachable shelf cabinet built as follows:
50 x 30 x 2 mm steel tube foot with double holes for placing of brackets, with two 25 mm wide and 15 mm high nylon levelers.
50 x 25 x 1.5 mm steel tube crossbars held to the foot by thread screws and box nuts.
One single piece top part on first quality 1 mm thick steel plate with a 55 mm wide section. Held to the foot by metallic brackets.
One single piece 1 mm thick first quality steel shelves. Both top and bottom label holders and book rim included. Held to the foot by metallic brackets.
Brackets made on first quality 15 mm thick steel plate.
Everything painted with heat-hardened powder, base epoxide resins and
polymerized by heating at 200° C previously cleaned, rinsed and chromic passified by phosphating. Choose color from enclosed chart.
DIMENSIONS:
Height: 2100, 1800, 1500, 1200 mm. Width: 900, 990, 1200 mm.
Depth: single and double.
Ask about other dimensions
Color Chart
